HFJ-GT-2(系列）(series)

電腦絎縫機

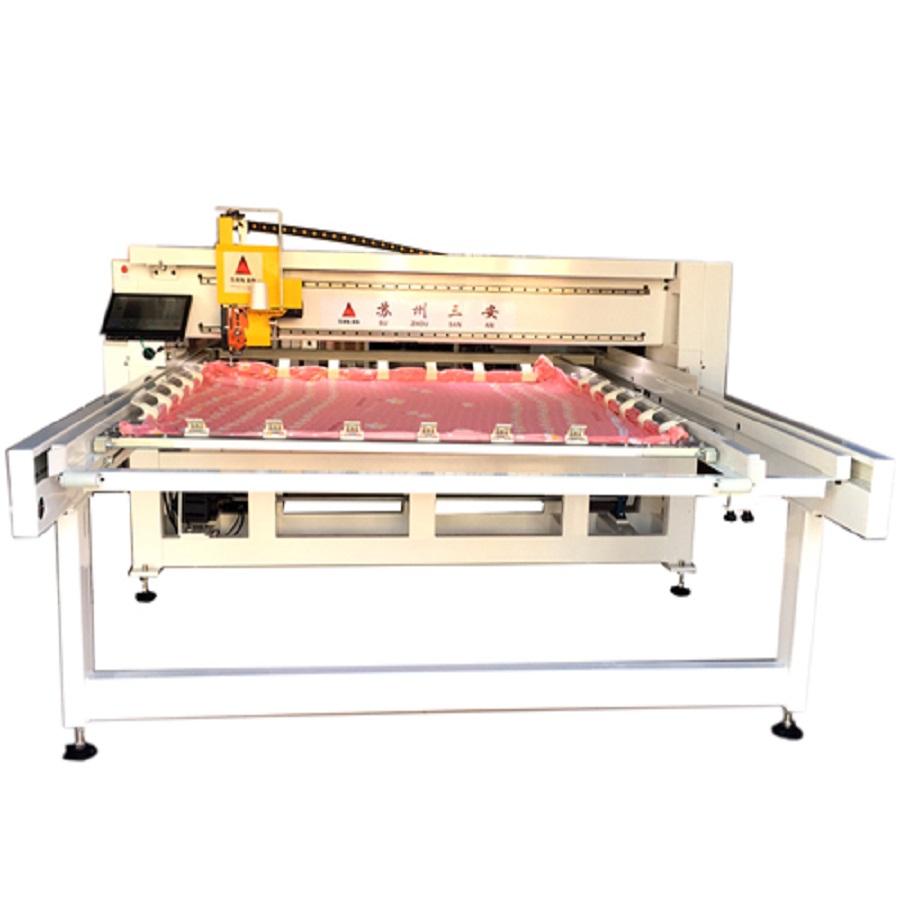

Computerized Quilting Machine

GT2整機使用全伺服控制系統，提供新穎的觸屏界面，采用全新的機頭機座傳動模式，配備高效的供油裝置，使本機在高速運行時，依舊保持良好的精準度，同步誤差控制在千分之一秒以內，自動剪線，操作方便，維護簡單。

GT2 series use full servo control system, a new touch-screen interface and a new transmission mode of engine head and base. Equipped with efficient fuel supply device, the machine can maintain good accuracy when it works at high speed. It can automatically raise the head and cut the line, which is easy to operate and easy to maintain.

系統功能：

system function

全新觸摸屏工業級上位機及工業化操作系統

A new touch-screen industrial upper monitor and industrialized operating system

可抬頭與剪線；可以生產厚墊子；

It can automatically raise the head and cut the line; Thick cushions can be produced easily;

整機全部采用高品質伺服系統，X及Y向采用伺服驅動系統速度高，穩定性好，精度更準確；

The whole machine adopts high quality servo system, which makes the system of high speed, good stability and high precision;

主軸采用上下電同步傳動，機頭移動采用直線導軌，運動精度高，噪音低；

The main shaft adopts the synchronous transmission of power up and down. Linear guide is used for head movement to make high precision and low noise.

可以使用USB閃存盤復制花樣及其他文件，并支持USB熱插拔；

Capable of copying pattern and other files with USB flash disk, and supports the plug and play installation and hot swapping;

一鍵設置框架尺寸與出棚位置，快捷方便；

One button setting frame size and finished needle position, fast and convenient;

支持Dat花型文件導入及批量導入；

Support Dat style file import and batch import;

支持軌跡尋找：支持空進、空退功能；支持軟件模擬尋點并快速到位；

Support trajectory finding; The needle can get forward or backwards without thread; Support software simulation point finding and fast in place.

實時顯示絎縫狀態及提示操作方法；

Real time display quilting state and prompt operation method;

支持花型拐角角度、拐角加工速度調整，適用于拐角加工精度要求較高的場合；

Support adjustment of pattern corner angle and corner machining speed, that is suitable for higher machining accuracy requirements;

支持花型的復制、刪除和花型編輯，包括邊空、旋轉、鏡像、位置微調、絎縫順序調整等；

Support the replication, deletion and editing of patterns;

通過界限及花樣邊空的設定，花樣圖形能進行自動縮放；

The size of pattern can be varied automatically through defining range and space of pattern.

支持絎縫針距、絎縫速度實時調節；適應不同加工需求；

Support the real-time regulation of quilting needle distance and quilting speed to adapt to different processing requirements;

支持實時坐標偏移；位置平移微調功能，可以對拼縫等進行精準絎縫；

Support for real-time coordinate migration; The offset function makes it available to piece accurately.

機頭機座采用液壓式集中供油裝置，使用簡便可靠；

The machine head and base have been equipped with the hydraulic centralized oil supply device which is convenient, brief and very credible;

機頭提供動壓腳及固定壓腳兩套裝置，且更換方便；

Two sets of presser foot (fixed presser foot and flexible presser foot) are equipped at the quilting head, which can be changed easily by your option;

單頭、單針、雙線鎖式線跡，大旋梭；

Single head, single needle, double lock stitch, big rotating hook.

繃框吸合；

Stretching frame;

LED燈照明；

Equipped with LED lighting lamp;

機器實際功耗低于1千瓦；

The actual power consumption of machine is less than 1KW.

停機時機針自動停止在高位i斷線檢測功能，斷面線時自動停機；

Needle stays at high position at pause time, machine stops working automatically while needle thread is broken.

系統測試功能，能夠迅速檢測機器的工作狀態，用于維修；

The system test function can detect the machine working status effectively for repairing;

主軸故障檢測功能能有效避免主軸故障造成的拉破床被現象；具有越界等保護功能；

The main shaft’s self-detecting function can protect the cushions from being broken due the main shaft failure. Motor power will be cut off when steel frame exceeds limit range.

提供自動及人工兩種回歸原點模式，能避免不必要的停機；

The unnecessary stop can be avoided because of the two modes provided to return to original point automatically or manually;

機頭與機座霧化加油（與速度同步）,旋梭自動霧化潤滑使針桿與旋梭壽命更長。

 The machine head and rotary spindle can be atomizing lubricated automatically, which will give the needle bar and the hook a longer life.

支持模擬加工，仿真加工軌跡；

Support analog machining and simulation machining trajectory;

三級限位安全防護：框架軟限位、機械軟限位、機械硬限位；

Three level limit safety protection: frame soft limit, mechanical soft limit, mechanical hard limit;

三級系統密碼權限：普通權限，管理員權限，高級管理員權限

Three level system password authority: general authority, administrator privileges, advanced administrator privileges.

四軸聯動（全伺服傳動）

Four-axis linkage(Full servo drive)

機頭與機座，高速高溫時，自動降溫。

Automatic cooling of nose and base at high speed and high temperature.

可升級自動化流水線。

Scalable automation pipeline.

機頭與機座無皮帶傳動，三安特有技術，高轉速，低噪音，高精度。

Head and base are without belt drive, unique technology of San An, which provides the high speed, low noise and high precision.
